GeoStamp® HD
GeoStamp® HD
GeoStamp® HD

GeoStamp® HD

Regular price
$595.00
Sale price
$595.00
Unit price
per


Description:

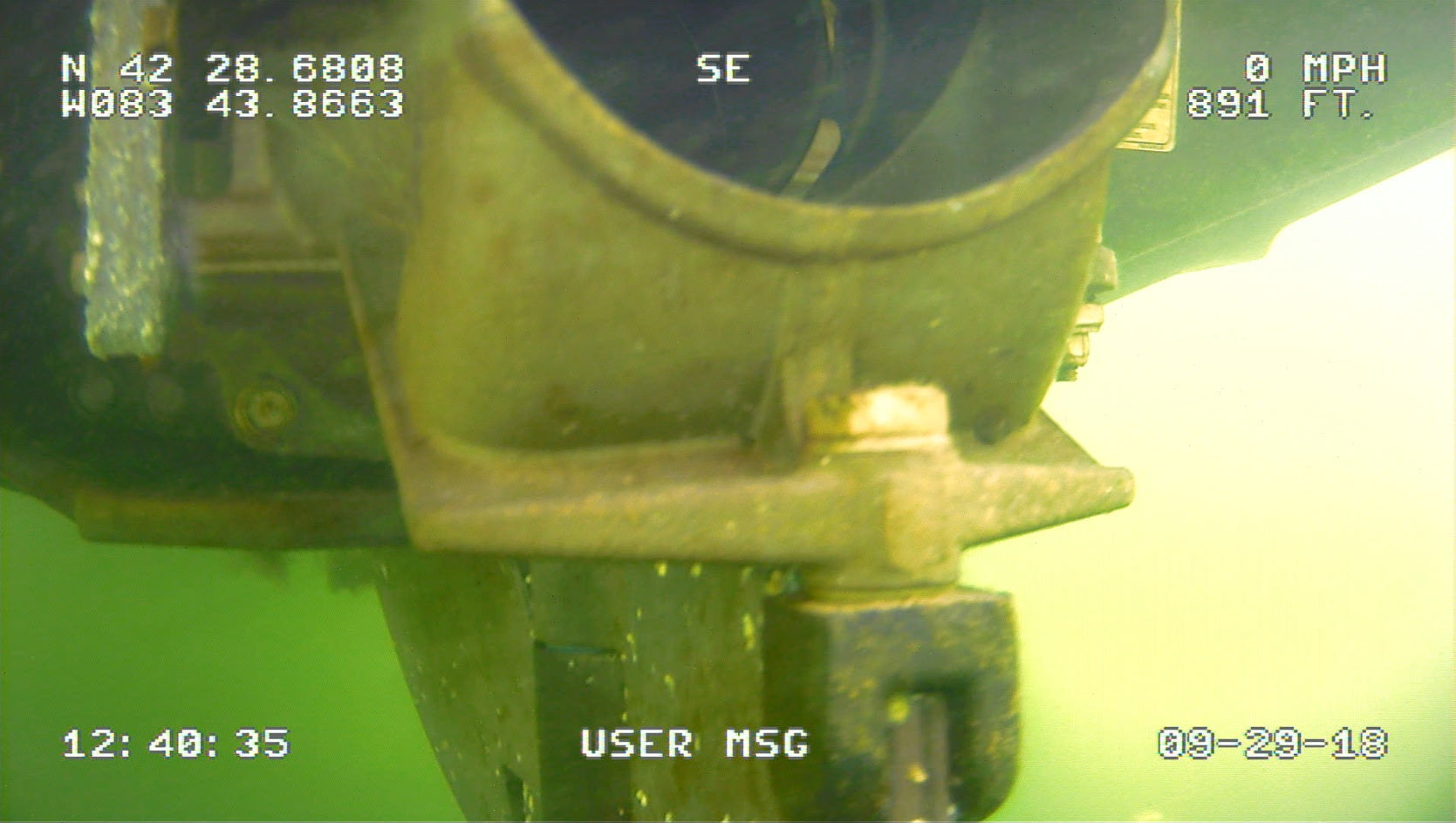

GeoStamp® HD is a standalone on-screen HD video overlay device that overlays GPS (Global Positioning System) latitude, longitude, heading (track), speed, altitude, date, time, and depth below transducer as well as a custom user message onto any incoming AHD, HD-TVI, and HD-CVI (720p / 1080p) video source such as a video camera.  All RS-232 NMEA 0183 compatible GPS receivers are supported.

Specifications:

Dimensions: 5 1/2" x 3 1/2" x 1 1/4"
Weight:   9.7 oz.
RoHS compliant:  Yes
Input voltage: 8.0 to 14.0 volts DC (150 ma max.)
DC plug: 2.1 mm x 5.5 mm, center tip positive
Operating temperature: -20C to +60C
Video formats: AHD, HD-TVI, HD-CVI (720P and 1080P)
Video level: 1 volt peak to peak
Video impedance:  Input 75 ohm, output 75 ohm resistively terminated
GPS input:  NMEA 0183.  GPRMC, GPGGA, and SDDBT sentences.  4,800 - 38,400 baud.
Speed format: MPH, KPH, and knots
Altitude format:  Feet and meters
Depth below transducer format: Feet and meters
Heading (track) format: Compass cardinal points (e.g. NW) and degrees
Time format: UTC with user time zone adjustment
Date format: MM/DD/YY and DD/MM/YY
User custom message length: 10 characters

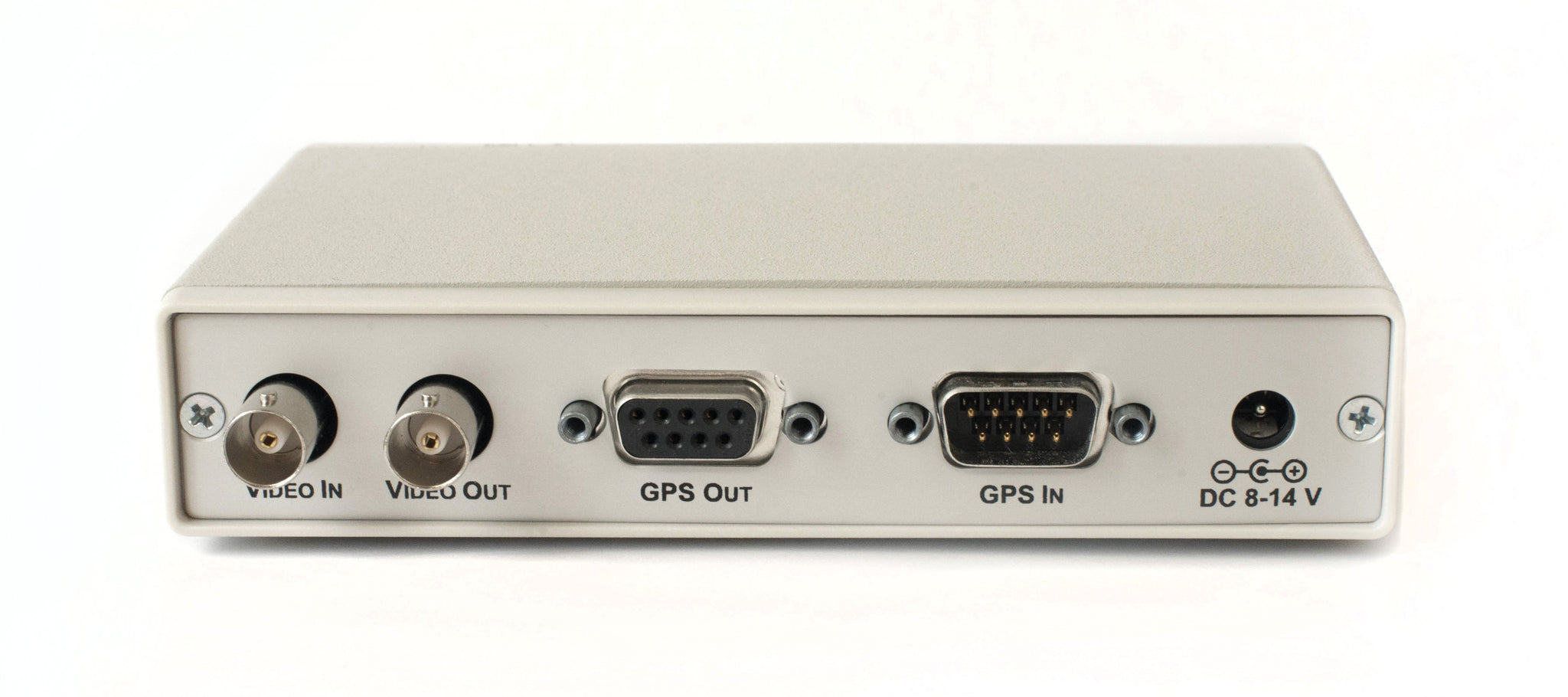

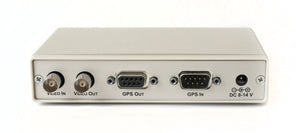

Connections:
GeoStamp® HD has five connectors

Connector Hookup
VIDEO IN (optional)
  • Attach noise free AHD, HD-TVI, HD-CVI (720P and 1080P) video source
VIDEO OUT
  • Attach to HD video monitor, DVR, video transmitter, etc.
SERIAL IN
  • Pin 2 - Attaches to GPS receiver serial output
  • Pin 5 - Attaches to GPS receiver serial ground
SERIAL OUT
  • Serial data pass-through
DC IN
  • +8.0 to +14 volts DC
  • 2.1 mm x 5.5 mm DC coax plug, center tip positive



Dip Switch Configuration:
GeoStamp® HD has 8 internal DIP switches.  To access the DIP switches disconnect all cables from the GeoStamp® HD unit then remove the 2 screws from the rear of the enclosure.  The rear panel and bezel with the circuit board will slide out.

Note: DIP switches are only checked during power-up.
DIP # Description
1 - 6 Reserved
7 Factory Reset
       OFF = Normal Operation
       ON = Factory Reset
8 Firmware flash update
       OFF = Normal operation
       ON = Firmware flash mode

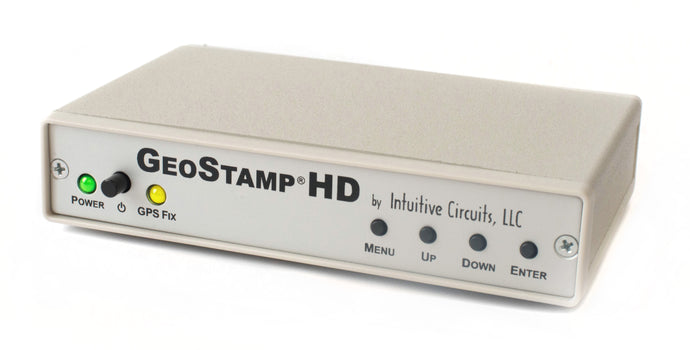

Operation:

  • Apply power to the GeoStamp® HD.  During power-up the yellow “GPS Fix” LED will blink for 10 seconds.
  • An on-screen “X” icon appears if there is no valid communications with the external GPS receiver
  • An on-screen “?” icon appears if there is a valid connection to the external GPS receiver but no satellite fix
  • The on-screen GPS fields will update after each valid NMEA GPRMC, GPGGA, and SBDBT sentence is received from the external GPS receiver.  The yellow “GPS Fix” will illuminate.
  • Press the MENU button to enter the on-screen menu configuration (see below)
  • Simultaneous press the UP/DOWN buttons to configure the incoming video input source (see below)


Configuring the incoming video source:

  • The GeoStamp® HD unit must be configured to match the incoming video input source (AHD, HD-TVI, and HD-CVI 720p or 1080p)
  • To match the incoming video input source press and release the UP/DOWN buttons simultaneously to cycle through the video options until stable text is visible on-screen (you will see an on-screen menu)
  • Press the ENTER button and wait until for the normal operation screen
  • The configuration information is stored in non-volatile memory so information is retained even with loss of power to GeoStamp® HD


Status Icon:
If the “Show Status” option is enabled (by default) the following icons may appear:

Icon Status
X
No or invalid communications with the attached GPS receiver
?
The attached GPS receiver does not have a satellite fix


“GPS Fix” LED:
The “GPS Fix” LED illuminates when the attached GPS receiver has a fix with a minimum of 4 satellites.  A GPS fix is required for on-screen GPS information to update.


On-Screen Menu Configuration:
At any time press the MENU button to enter the on-screen menu configuration.  The UP, DOWN, and ENTER buttons move the cursor and change the settings.  All configuration information is stored in non-volatile memory so information is retained even with loss of power to GeoStamp® HD.


Main Menu:

Menu Option
Action / Setting
Enable GPS Overlay OFF  = Display the overlay text
ON    = Pass video through without displaying the overlay text
Display Options Menu... Display the Options Menu
Field Formatting Menu... Display the Field Formatting Menu
GPS Settings Menu... Display the GPS Settings Menu
Save Changes and Exit Save changes and exit the Main Menu
Discard Changes and Exit Discard changes and exit the Main Menu

Display Options Menu:
Menu Option Action / Setting
Screen Layout On-screen GPS field layout formats
  • Standard - Fields are displayed on the top and bottom of the screen
  • Top - Fields are displayed on the top of the screen
  • Bottom - Fields are displayed on the bottom of the screen
  • Left - Fields are displayed on the left side of the screen
  • Right - Fields are displayed on the right side of the screen
  • Custom - Future enhancement
Show Status
  • ON - Display the GPS receiver status on-screen
  • OFF - Do not display the GPS receiver status on-screen
Show Altitude
  • ON - Display altitude on-screen
  • OFF - Do not display altitude on-screen
Show User Msg
  • ON - Display the user defined message on-screen
  • OFF - Do not display the user defined message on-screen
User Message Enter an optional 10 character on-screen message
  • MENU button to decrement cursor position
  • ENTER button to increment cursor position
  • UP / DOWN buttons to cycle through characters
Download Custom Layout Future enhancement
Main Menu Return to Main Menu

Field Formatting Menu:
Menu Option Action / Setting
Altitude Altitude Formats
  • Meters
  • Feet
Speed Speed Formats
  • Meters
  • Feet
Heading Heading Formats
  • Degrees (e.g. 90)
  • Compass (e.g. NW)
Date Date Formats
  • MM-DD-YY
  • DD-MM-YY
UTC Offset Time offset from UTC (-12 through +12) e.g. -5 is EDT
  • ENTER button to increment value
Main Menu Return to Main Menu

GPS Settings Menu:

Menu Option
Action / Setting
Baud Rate External GPS receiver baud rate (4,800 - 38,400)
Override Alt With Depth OFF  = Display altitude
ON    = Display depth to transducer
Diagnostics... Display GPS diagnostics screen
Main Menu Return to Main Menu



Warranty & Service:

If the product fails to perform as described in our product description or specification, within 1 year from the date of shipment to the buyer, we will repair or replace the product and/or accessories originally supplied. Failure due to improper installation, misuse, abuse or accident is not covered by this warranty. Incidental and consequential damages are not covered by this warranty. The buyer must first obtain a Return Material Authorization number by calling (248) 588-4400, or send email to support@icircuits.com. Ship the defective product (with RMA number) to Intuitive Circuits, 3928 Wardlow Ct., Troy, MI 48083, freight prepaid.
